FIBERGLASS GEOGRID COMPOSITE WITH GEOTEXTILE

FIBERGLASS GEOGRID COMPOSITE WITH GEOTEXTILE

Product description: Made of fiberglass geogrid and geotextile Anti-fatigue cracking Composite geogrid with PET/PP Non-Woven Geotextile

Product introduction

COMPOSITE FIBERGLASS GEOGRID

Specifications

Made of fiberglass geogrid and geotextile
Anti-fatigue cracking
Composite geogrid with PET/PP Non-Woven Geotextile
Low elongation

Fiberglass Geogrid Composite with PET/PP Non-Woven Geotextile

1.Introduction

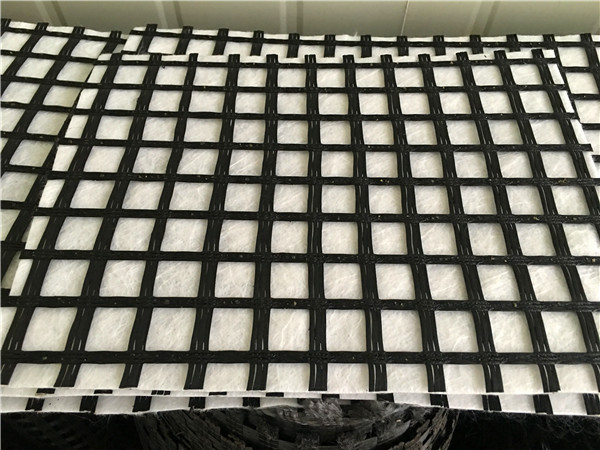

Fiberglass geogrid composite geotextile is a compound product made of fiberglass geogrid and geotextile.It is the new material that can prevent the reflection cracking, water damage and improving loading capacity in the project of road construction and renovation.

It has the property of high temperature rutresistance and anti-fatigue cracking, therefore prolong the life time of pavement.

2. Product performance:

(1)High tensile strength and low elongation ratio

(2)No long-term creep

(3)Thermal stability

(4)The compatibility of asphalt is high

(5)Physical chemistry stability is good

(6)Aggregate embedded locks and limit characteristics

3,Application

(1)Road surface reinforcement of road, railway and airport road

(2)Maintenance, reconstruction and widening of the old road surface

(3)Reinforcement of soil roadbed, irrigation channels and water dams

(4)Strengthens, the bridge connection surface

4,Main specification:

Fiberglass geogrid can complex polyester/polypropylene nonwoven or woven geotextile

Width: normal width 3.9m,1.0m-6.0m all can do

Length:nomal is 50m/100m,or as per your request.

The glassfiber geogrid tensile strength can be 25-25kN/m to 200-200kN/m

The geotextile weight can be 10g/m2 to 1200g/m2

5,Technical parameter:

Fiberglass geogrid composite geotextile technological standard
specification	CFG 30×30		CFG 50×50		CFG60×60			CFG 80×80			CFG 100×100			CFG 120× 120		CFG 150× 150			CFG 200× 200	CFG 300× 300
Fiberglass geogrid properties (GB/T 21825-2008)
Mesh center distance(mm)		MD	12.7±3.8 25.4±3.8 50.8±3.8
		TD	12.7±3.8 25.4±3.8 50.8±3.8
breaking strength(kn/m)		MD	30	50		60			80			100		120			150		200	300
		TD	30	50		60			80			100		120			150		200	300
Breaking Elongation(%)		MD	4	4		4			4			4		4			4		4	4
		TD	4	4		4			4			4		4			4		4	4
Normal composite Geotextile properties (GB/T17638-1998)
Unit weight(g/m2)		100	150	200			250			300			350		400			450		500
breaking strength (kn/m)		2.5	4.5	6.5			8			9.5			11		12.5			14		16
CBR mullen burst strength		0.3	0.6	0.9			1.2			1.5			1.8		2.1			2.4		2.7
Tear strength		0.08	0.12	0.16			0.2			0.24			0.28		0.33			0.38		0.42
width(m)		1m- 6m	1m- 6m	1m- 6m			1m- 6m			1m- 6m			1m- 6m		1m- 6m			1m- 6m		1m- 6m
