Product introduction

TX1500

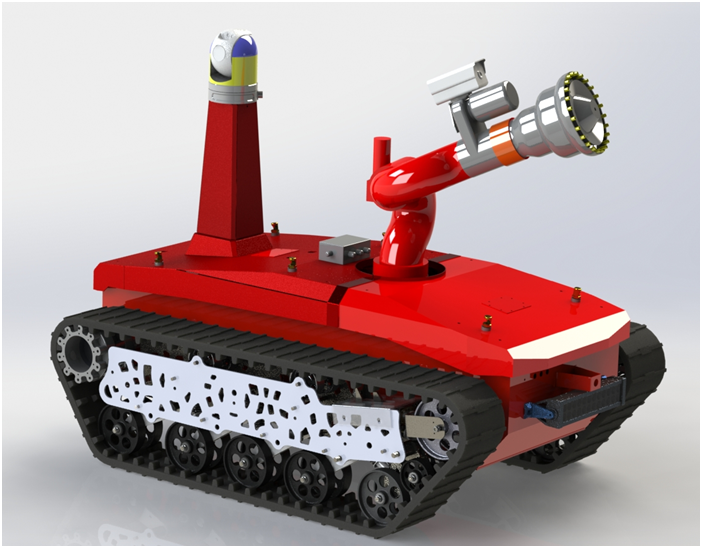

Crawler fire fighting robot

Basic Parameters

Product features

• Applicable to a variety of water supply systems such as fire trucks and municipal fire water.

• Independent suspension damping system for high impact resistance. The crawler type walking mechanism has strong obstacle-obstacle ability and adapts to complex terrain.

• The system is designed for high temperature resistance and comes with a water curtain self-spray cooling device.

• Remote control of fire cannon swing, pitch, automatic sweep, multiple spray methods;

• HD wireless image transmission system (optional) for remote real-time video surveillance;

• Adopt advanced wireless communication technology, with long communication distance and strong anti-interference;

• Strong maneuverability, fast moving speed and adjustable speed;

• Autonomous obstacle avoidance function (optional): The obstacle avoidance system automatically recognizes the obstacle distance, has high sensitivity, and has a long detection distance.

• Strong mobility and fast movement;

• High energy density lithium battery power supply, rechargeable and replaceable;

• Equipped with environmental detection sensors to detect gas concentrations at different heights;

• The operator interface is intuitive and easy to operate.

Water cannon parameters:

PSKD70~100W Electronically controlled fire water cannon

* Long range, concentrated jet, large protection area, remote control distance

* Flexible and convenient operation, the gun body can be used for horizontal and vertical rotation

* Water cannon has flowering and DC function

* Suitable for fire trucks, fire boats, fixed fire turrets and fire pipes

* Fire cannon controller with continuous overload capability, overload power 180W

* With internal voltage disconnection to protect the board when the voltage is higher than 29V and lower than 19V

* The main specifications and performance parameters are in compliance with the requirements of the People's Republic of China Standard GB19156-2003 "General Technical Conditions for Fire Cannons"

Main Parameters

Control and smart device

Camera: visible light + night vision + infrared thermal image (video wireless image transmission) (optional)

Lighting device: lighting (about 3-4, power 10W or so, depending on the specific situation)

Control form: wireless remote control

Wireless control distance: ≥700m (visual environment); non-visual environment ≥200 (non-visual environment)

Environmental awareness: temperature and humidity sensor, radar (optional)

Self-protection device: body automatic water spray protection system
