PP Welding Biaxial Geogrid

Tensile strength:20kn-150kn
Roll width:1m-6m
Roll length:50-100m
Color: Black
Product description: PP Welding Biaxial Geogrid，welding geogrid,PP geogrid

Product introduction

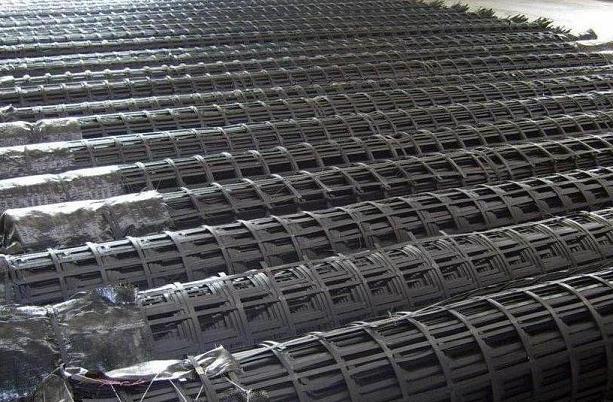

PP Welding Biaxial Geogrid

PP welded geogrid is a new kind of environmentally friendly and green construction material, which is added reinforced fiber into polypropylene stretch belt to enhance reinforcement, then welded into shape “#”. This material is in high strength, small deformation, corrosion resistant, long service life, convenient installation and low cost, especially able to meet more than 100 years’ operating requirements of all kinds of permanent works.

[TYPE]

20-20KN,30-30KN,40-40KN,50-50KN,60-60KN,70-70KN,80-80KN,90-90KN,100-100KN,110-110KN, 150-150KN

Roll width: 2m, 3m, 4m, 5m, 6m

Roll length: 50m, 100m, 150m

[PROPERTIES]
1. High strength

2. Low elongation (break elongation not more than 12%

3. Good flexibility, even cracking, still keeping the function of geogrid.

[TECHNICAL SPECIFICATION]

Item	Art. No.	25-25	40-40	60-60	80-80	100-100	125-125	150-150
Specs		25	40	60	80	100	125	150
Tensile strength(MD/CD),kN/m≥		25	40	60	80	100	125	150
Elongation(MD/CD),%≤		12	12	12	13	13	13	13
Tensile strength at 2% elongation(MD/CD),kN/m≥		10	20	22	35	55	60	85
Tensile strength at 5% elongation(MD/CD),kN/m≥		15	25	40	55	65	90	100
The welding point peeling strength,N≥		30
